2000W/20khz Ultrasonic Metal Spot Welding Transducer

Ours ultrasonic Co.,Ltd

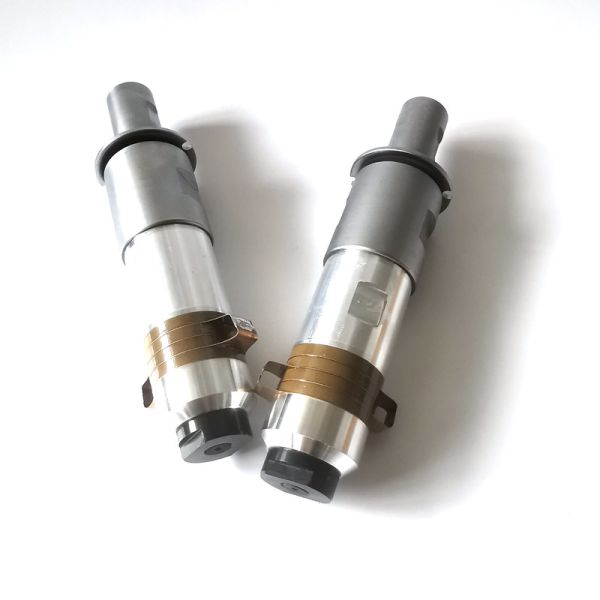

2000W/20khz Ultrasonic Metal Spot Welding Transducer

  • 1
  • 2

Brand Name : OURS Ultrasonic

Model Number : ARS-HJHNQ201500

Certification : CE and FCC

Place of Origin : Shenzhen,China

MOQ : 1set

Price : USD150-USD160

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs

Delivery Time : within 5 days

Packaging Details : export carton

frequency : 20khz

power : 2000W

Output : Switching Transducer

Usage : Vibration Sensor

Application : Plastic Ultrasonic Welding Transducer

type : 2000w ultrasonic welding transducer

Contact Now

2000W/20khz ultrasonic Metal spot welding transducer

Application scope:
(1) The most common application fields of ultrasonic spot welding are semiconductor lead welding and IC circuit welding.
(2) Welding of battery pole piece (different welding processes of nickel strip + copper foil, nickel strip + aluminum strip, aluminum strip + aluminum foil, aluminum strip + aluminum cover, aluminum shell + aluminum nickel composite strip, etc.).
(3) Automobile electric assembly parts and other applications (welding of automobile wiring terminal, automobile wiring harness, motor terminal, relay chip, electrolytic capacitor pole piece, carbon brush piece, cooling rack piece, etc.).
(4) The wires are mutually fused with the famous electronic components, terminals, contacts and connectors, and the wires are mutually fused to form one or more mutually fused wires.
(6) The heat sink, heat exchange fin and honeycomb core of household appliances and automobile products are fused.
(7) , electromagnetic switch, no fuse switch and other high current contacts, mutual fusion of dissimilar metal sheets.
(8) Welding of non crystalline alloy materials.

TypeFull-length(mm)Joint Bolt(mm)Frequency(KHz)Resonance Impedance(Ω)Capacity(pF)Input Power
(W)
ARS-HJHNQ-152500 P8153M20×1.51515130002500
ARS-HJHNQ-152000 P8167M20×1.5151095002000
ARS-HJHNQ-151500 P4171M18×1.51512125001500
ARS-HJHNQ-151800 P4118M20×1.52015150001800
ARS-HJHNQ-202000 P8128M18×12010110002000
ARS-HJHNQ-202000 P8124M18×1.52012100001500
ARS-HJHNQ-20700 P81121/2-20 UNF20159000700
ARS-HJHNQ-20900 P81331/2-20 UNF201510000900
ARS-HJHNQ-20600 P8121M18×1.520156000600
ARS-HJHNQ-30500 P877M10×1.53055500500
ARS-HJHNQ-28200 P492.1M10×128203000200
ARS-HJHNQ-28100 P891M8×128252200100
ARS-HJHNQ-28250 P8941/2-20 UNF28204000250
ARS-HJHNQ-202000 P81281/2-20 UNF2010200002000
ARS-HJHNQ-201500 P81241/2-20 UNF2010160001500
ARS-HJHNQ-201300 P81281/2-20 UNF2010125001300
ARS-HJHNQ-201500 P81321/2-20 UNF2010110001500
ARS-HJHNQ-20900 P81231/2-20 UNF20109500900
ARS-HJHNQ-152000 P4171M18×1.51512100002000
ARS-HJHNQ-35100 P871M8×135252200100
ARS-HJHNQ-38100 P866M8×1.2538401200100
ARS-HJHNQ-38200 P465M8×138143300200

20khz/2000W ultrasonic plastic welding machine transducer

2000W/20khz ultrasonic Metal spot welding transducer
